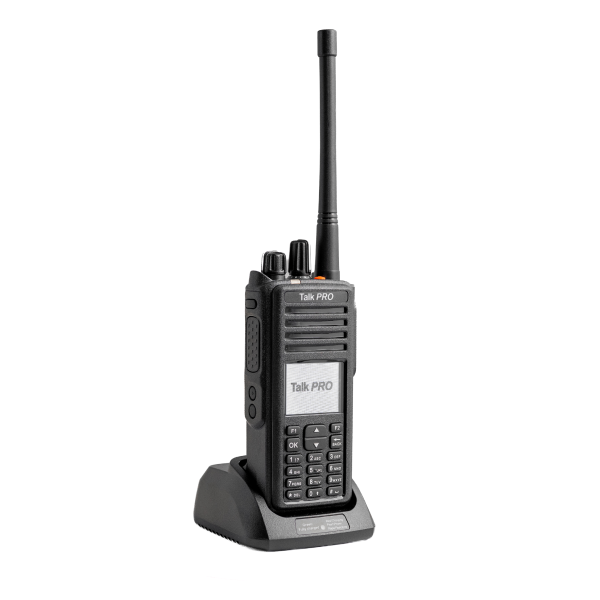

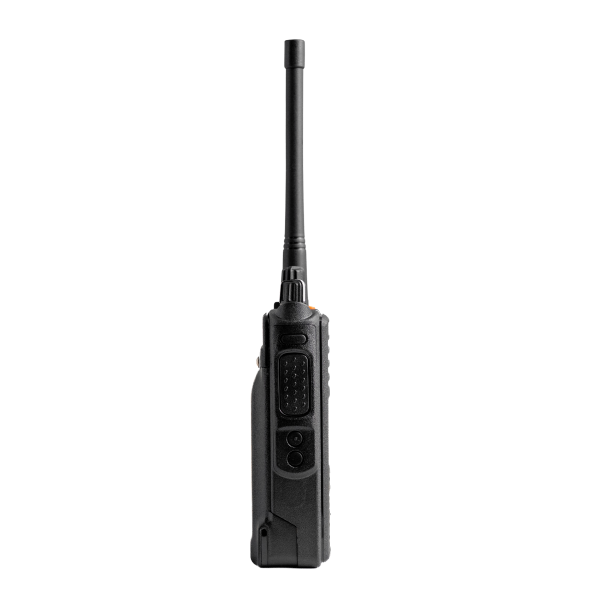

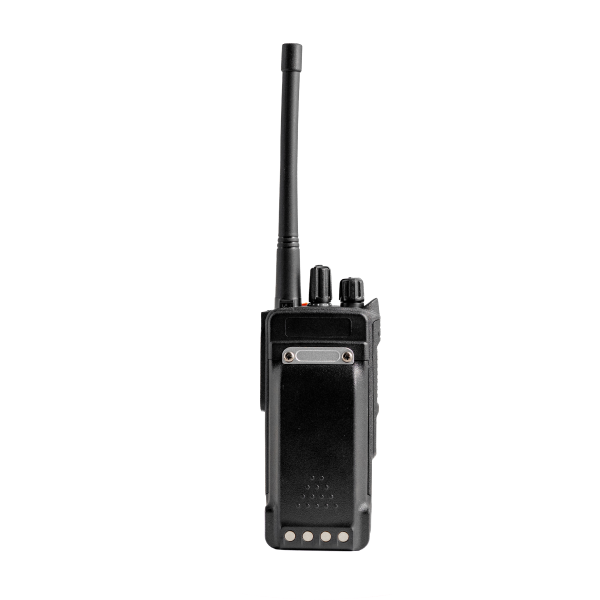

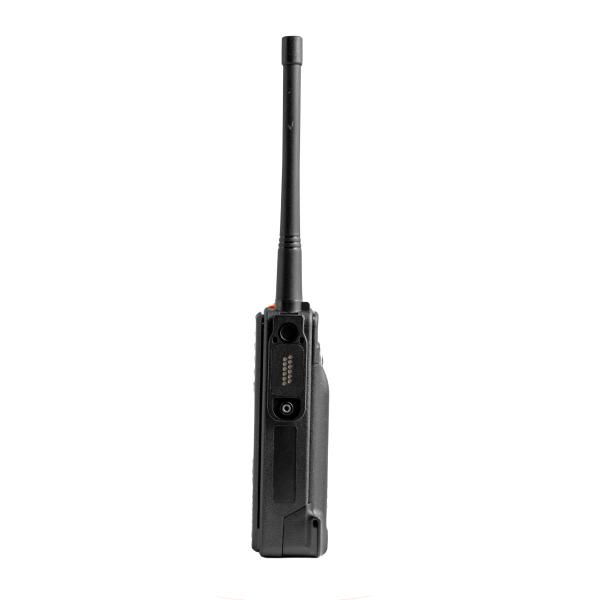

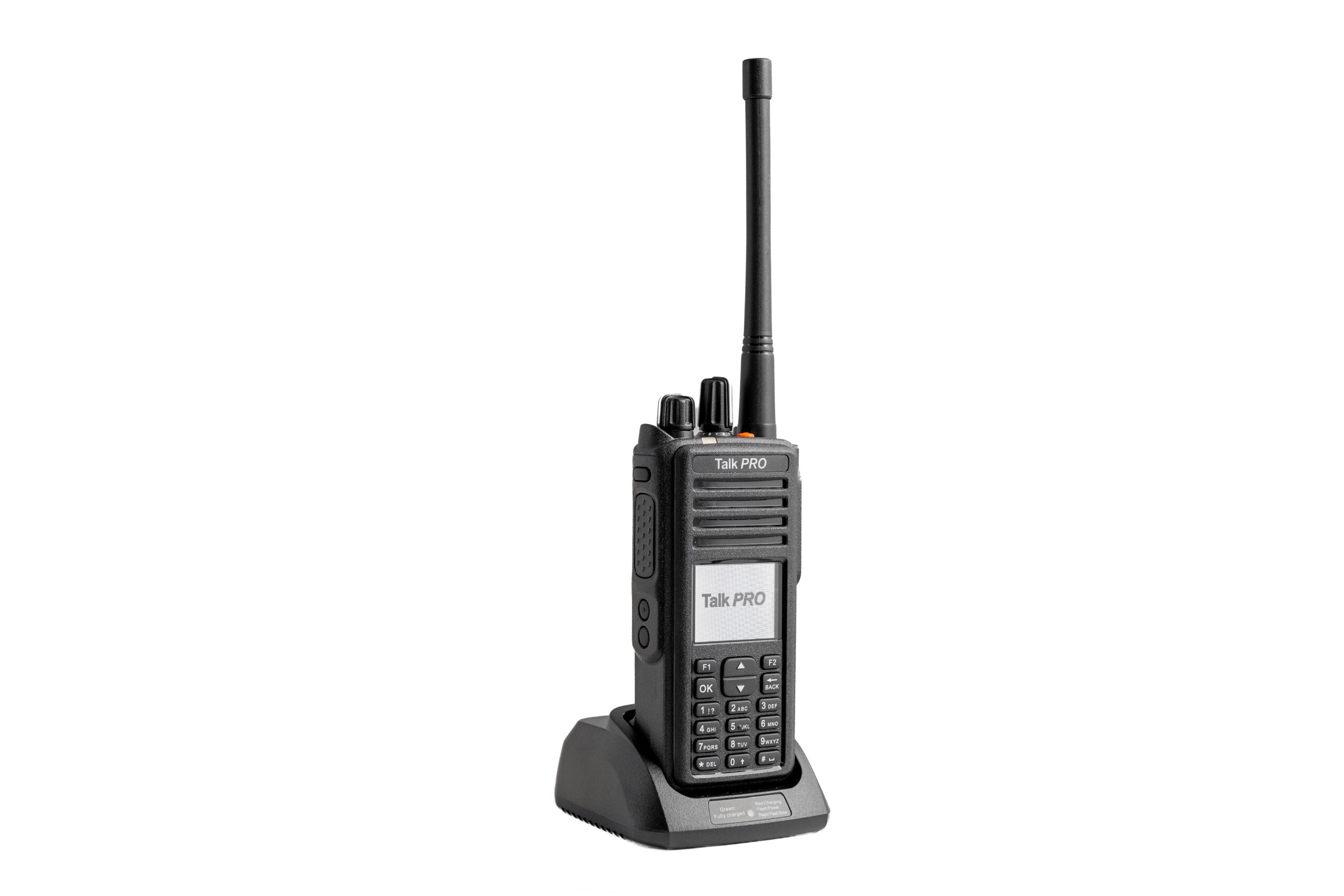

TD511+
TD511+ - Image 2
TD511+ - Image 3
TD511+ - Image 4
TD511+ - Image 5
TD511+ - Image 6
Categories: ,

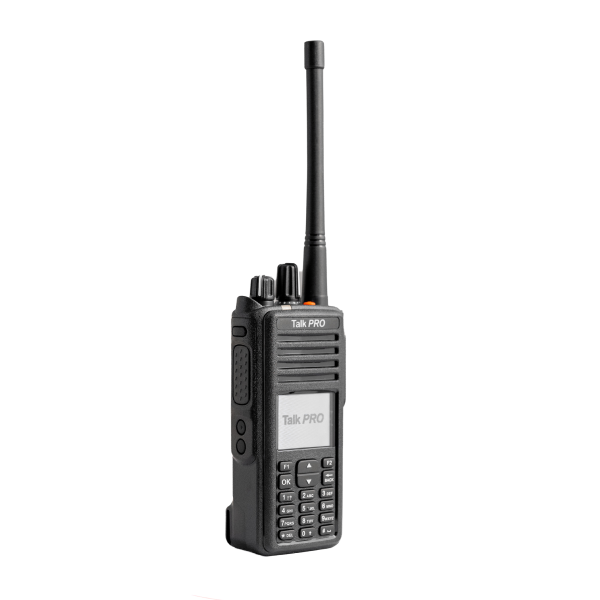

TD511+

*Taxes Extra

The TalkPRO TD511+ is a professional DMR Tier III radio built for mission-critical communication across defence, public safety, industrial operations, utilities, and transportation networks. Designed for demanding environments, it combines secure digital communication, GPS location tracking, Bluetooth connectivity, AES-256 encryption, and IP68 protection in a rugged portable design. With a high-capacity battery and advanced signalling capabilities, the TD511+ delivers dependable communication when reliability matters most.

Highlights:

  • 2000 Channel Capacity
  • 2W Loud Audio Output
  • Rugged & Waterproof Design
  • Advanced Communication Functions
  • Ideal for Commercial Operations

Enquire Now
Chat on WhatsApp
Categories: ,

Rugged, Built to Last

Wide Area Coverage

Long Lasting Battery

Expert Service Care

Large Dealer Network

Product Overview

General

Technical Specifications
Frequency Range 136–174MHz / 400–470MHz
Channel Capacity 2000
Channel Spacing 12.5KHz / 25KHz
Operating Voltage 7.4V
Digital Vocoder AMBE+2
Digital Protocol DMR Open Standard DMR Tier III
Battery Capacity 3250mAh Li-ion Battery
Communication Security AES-256 Encryption
Digital Modulation 4FSK
Weight 310g
Dimensions 29(L) × 55(W) × 131(H) mm
Antenna Impedance 50Ω
VSWR 1.5
EMI / EMC ETSI EN 301 489-1 & ETSI EN 301 489-5
Display 2″ Full-Colour LCD with 10-row Alphanumeric Display
Keypad Backlit DTMF Keypad
Bluetooth Integrated Bluetooth for Voice & Data
GPS Built-in GPS with GIS Location Tracking
Messaging Pre-defined & Short Custom Messages
User Programming Supported
Man-Down Alert Supported
Dust & Water Protection IEC 60529 – IP68
ESD Protection IEC 61000-4-2 Level 4
Military Standards MIL-STD-G
Signal Strength Indicator Real-time RF Signal Strength Indicator

Technical

Technical Specifications
RF Power Output High: 5W / Low: 1W
FM Emission 12.5KHz Data: 7K60FID & 7K60FXD1 / 12.5KHz Voice: 7K60F1E & 7K60FXE / Voice & Data Combination: 7K60F1W / Analog: 11K0F3E
Receiver Sensitivity Analog: 0.18μV @ 12dB SINAD / Digital: 0.18μV @ 12dB SINAD
Receiver Spurious Emission ≤ -57dBm
Audio Output 2W
Spurious & Image Rejection 70dB
Audio Distortion (Receiver) Less than 3%
Adjacent Channel Selectivity 60dB
Intermodulation Rejection 70dB
Modulation Limiting ±2.5KHz @ 12.5KHz
Transmitter Spurious Emission ≤ -57dBm
FM Hum & Noise -40dB @ 12.5KHz
Adjacent Channel Power -60dB @ 12.5KHz
Audio Distortion (Transmitter) Less than 3%
Frequency Stability ±1.5ppm
Audio Response +1, -3dB
TTFF (Cold Start) < 1 minute (with good signal)
TTFF (Hot Start) < 10 seconds (with good signal)
GPS Accuracy Horizontal Accuracy ≤ 10m

Environment

Environment
Operating Temperature -30°C to +85°C
Storage Temperature -30°C to +85°C
Humidity 95% Max at +40°C (Non-Condensing)
Thermal Shock Tested as per MIL Standard G

Description

The TalkPRO TD511+ is a professional DMR Tier III radio built for mission-critical communication across defence, public safety, industrial operations, utilities, and transportation networks. Designed for demanding environments, it combines secure digital communication, GPS location tracking, Bluetooth connectivity, AES-256 encryption, and IP68 protection in a rugged portable design. With a high-capacity battery and advanced signalling capabilities, the TD511+ delivers dependable communication when reliability matters most.

Highlights:

  • 2000 Channel Capacity
  • 2W Loud Audio Output
  • Rugged & Waterproof Design
  • Advanced Communication Functions
  • Ideal for Commercial Operations
